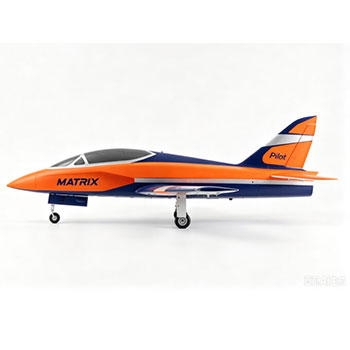

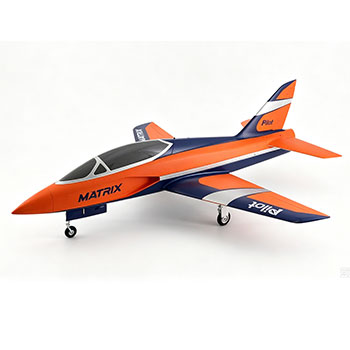

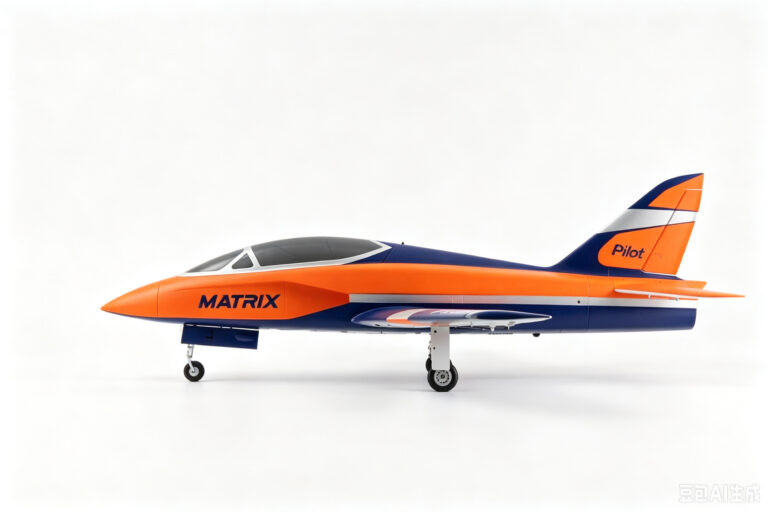

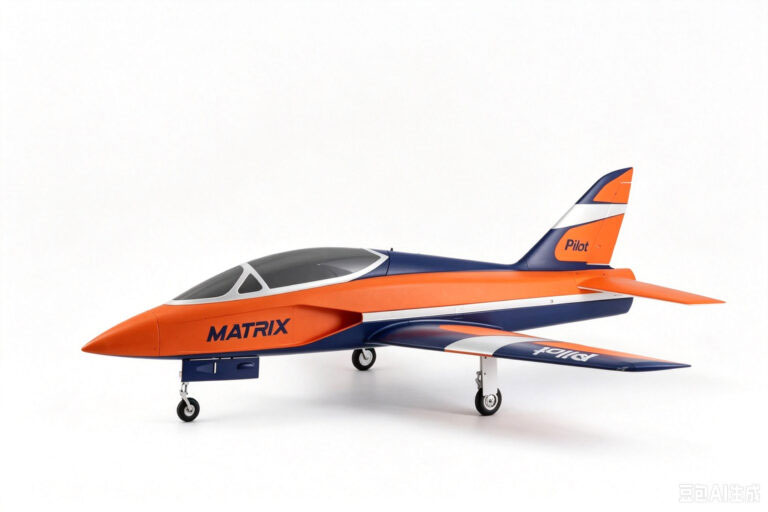

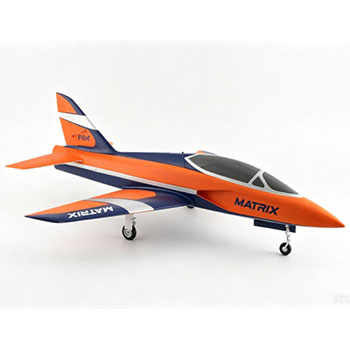

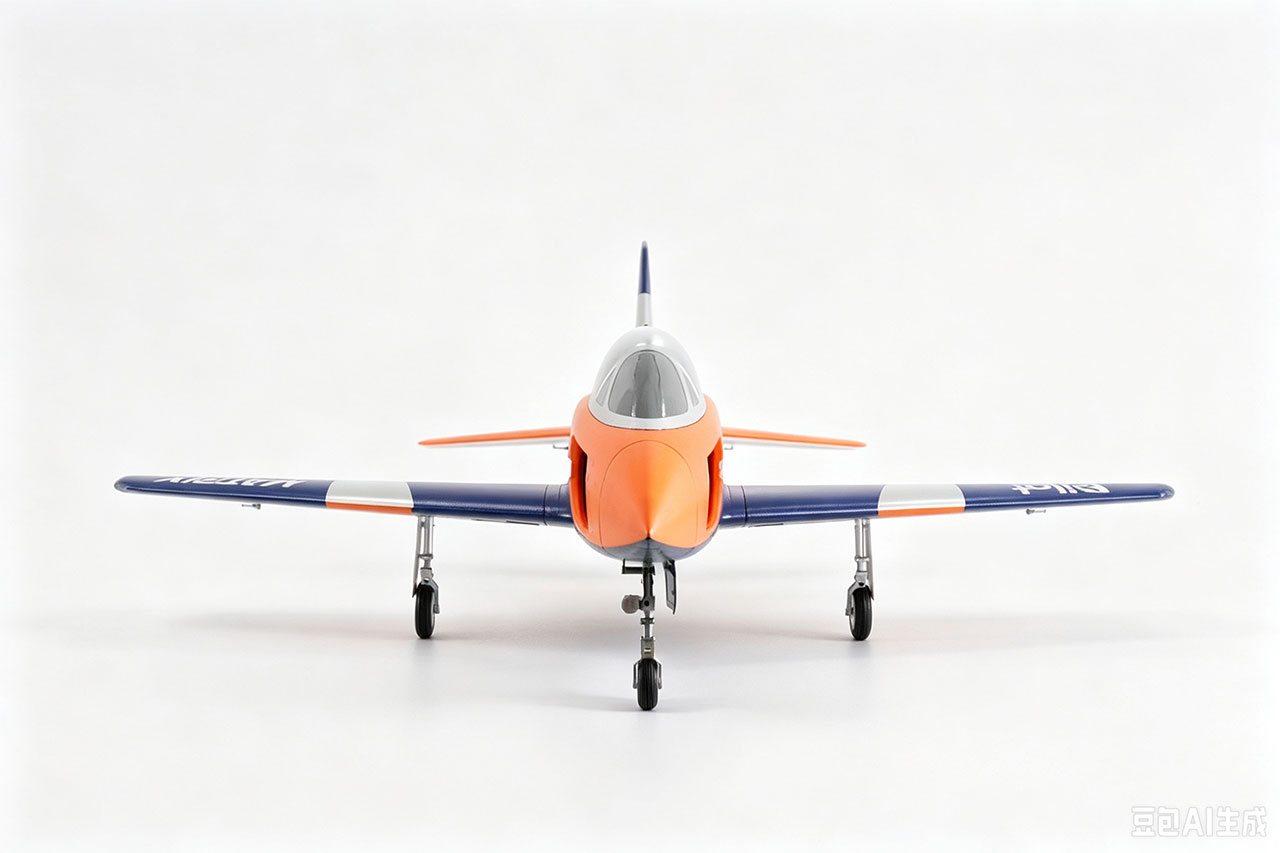

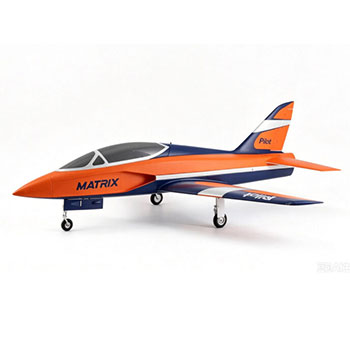

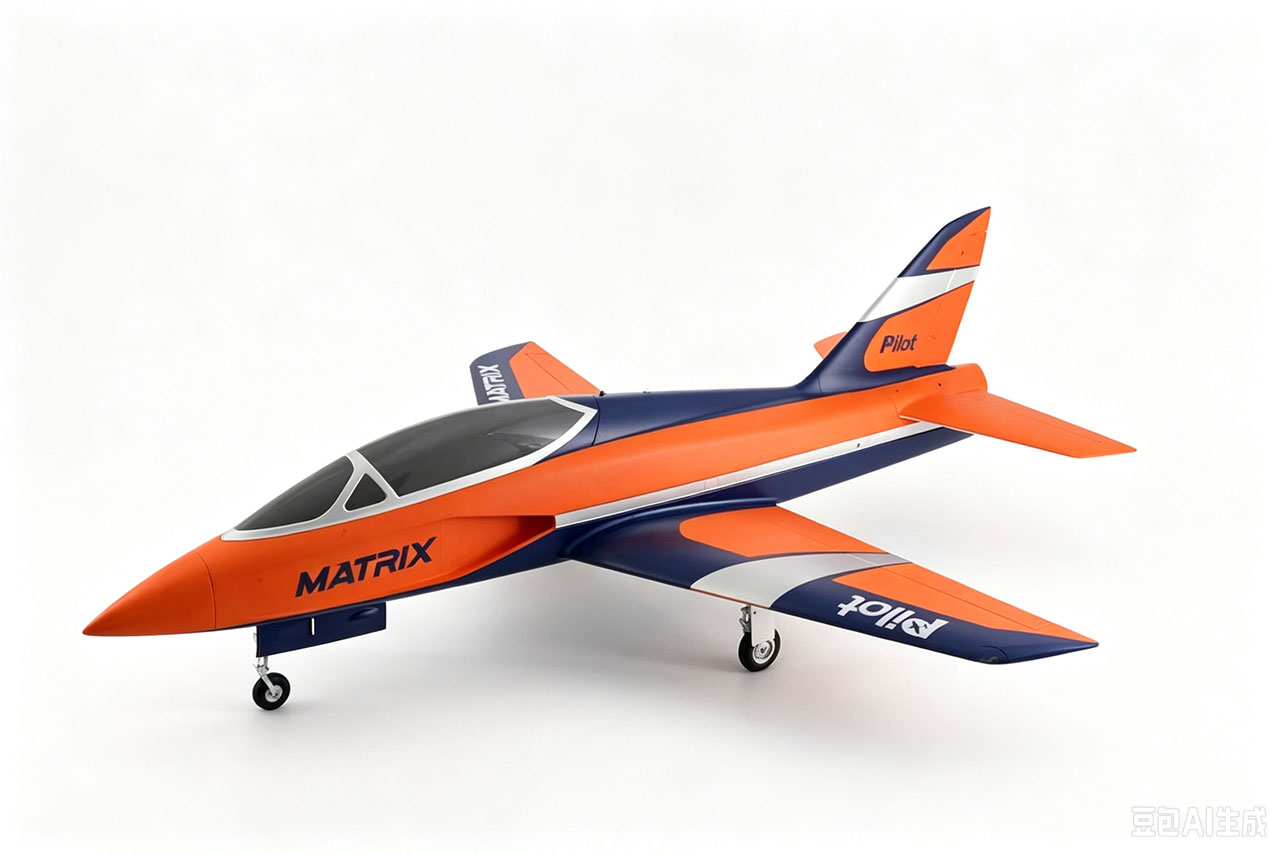

Pilot-RC Matrix 90mm EDF Jet

Click On Images to Enlarge

Overview

The Matrix Foam EDF has been designed to deliver confidence at every stage of flight.

Whether you’re flying smooth precision aerobatics, high-speed passes, or slow high-alpha maneuvers, the aircraft remains predictable, stable, and easy to control. The optimised wing loading and carefully developed aerodynamics provide excellent tracking while maintaining outstanding agility throughout the entire flight envelope.

One of the key goals throughout development was to create an aircraft that is approachable for intermediate pilots while offering the performance and precision demanded by experienced EDF enthusiasts. The result is a jet that feels equally at home performing smooth sport flights, precision aerobatics, or 3D maneuvers.

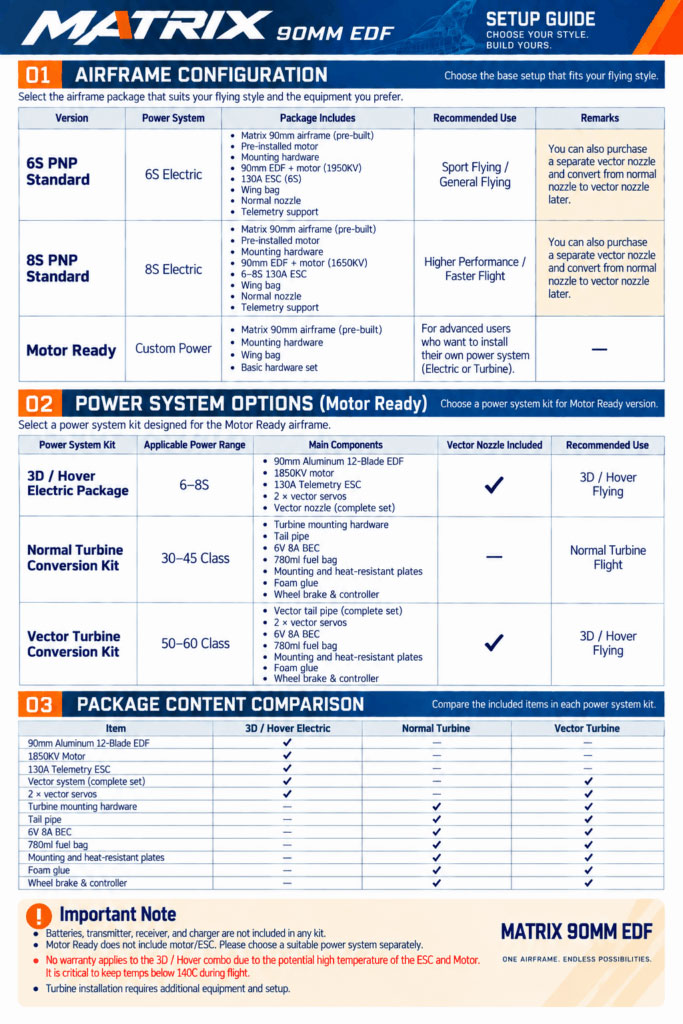

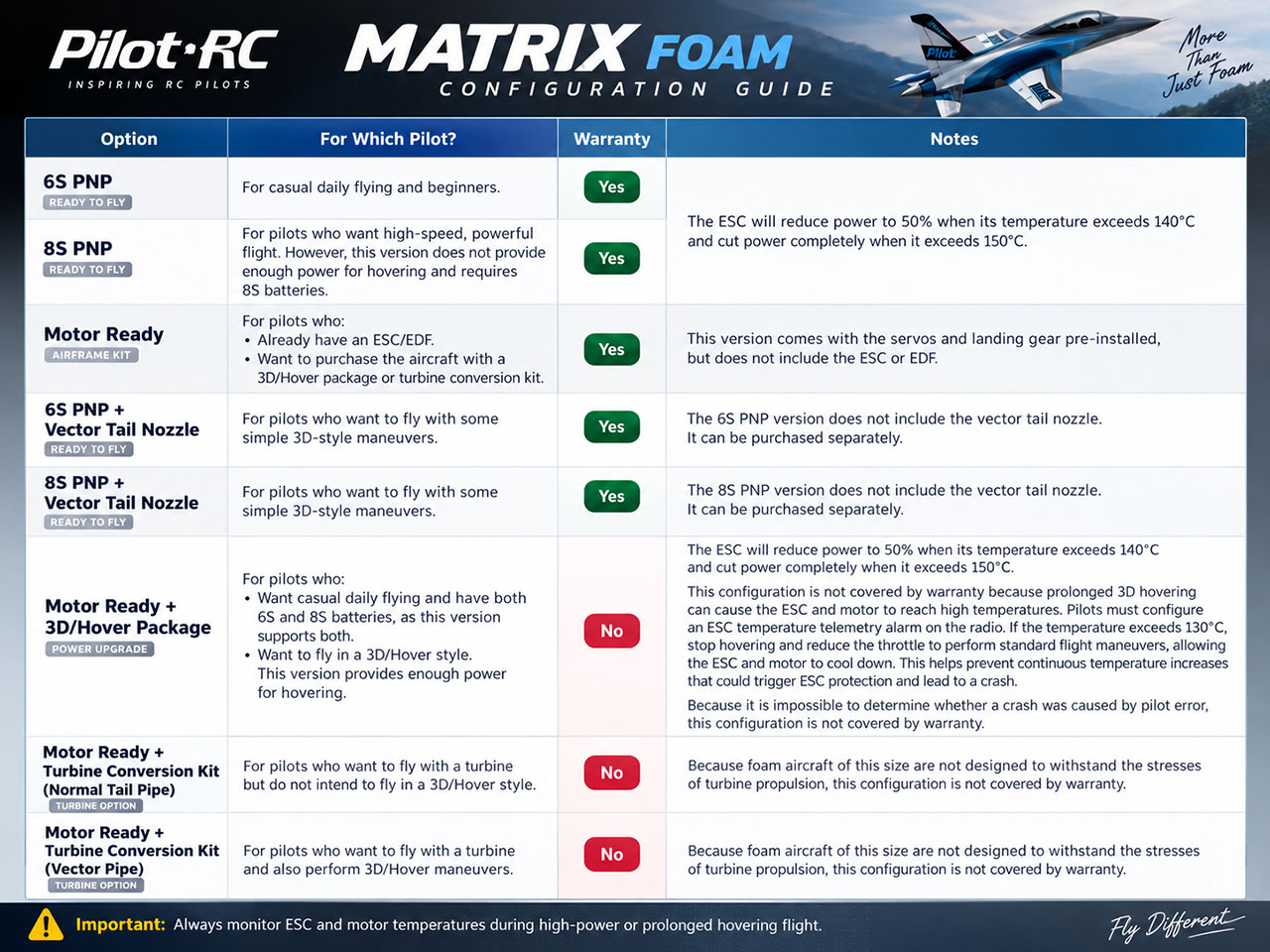

Specifications of PNP 6s standard configuration

Model:	Matrix Sport Jet
Wingspan:	55.6" (1,413mm)
Length:	57.4" (1,457mm)
Weight:	7.5lbs (3.4kg) with 6s version
Motor size:	Brushless 3670-KV1950
ESC:	Pilot/Dualsky Summit 130A with program function and telemetry
Servo:	Micro 13g x 8pcs
Radio:	6 channel
CofG:	135mm from leading edge
EDF:	90mm ducted fan (12-blade)
Recommend battery:	Li-Po or LiHV 6s 5000mah-6000mah 45C+

Video:

This is Video of 6s PNP Configuration

This is Video of 8s PNP Configuration with Vector Nozzle (rear vector need to purchase separately)

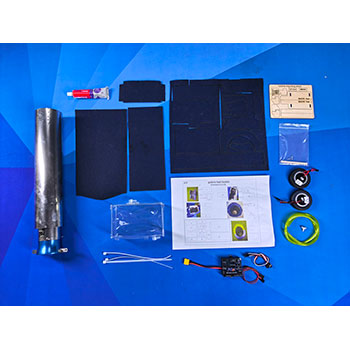

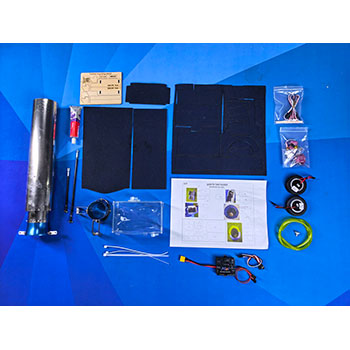

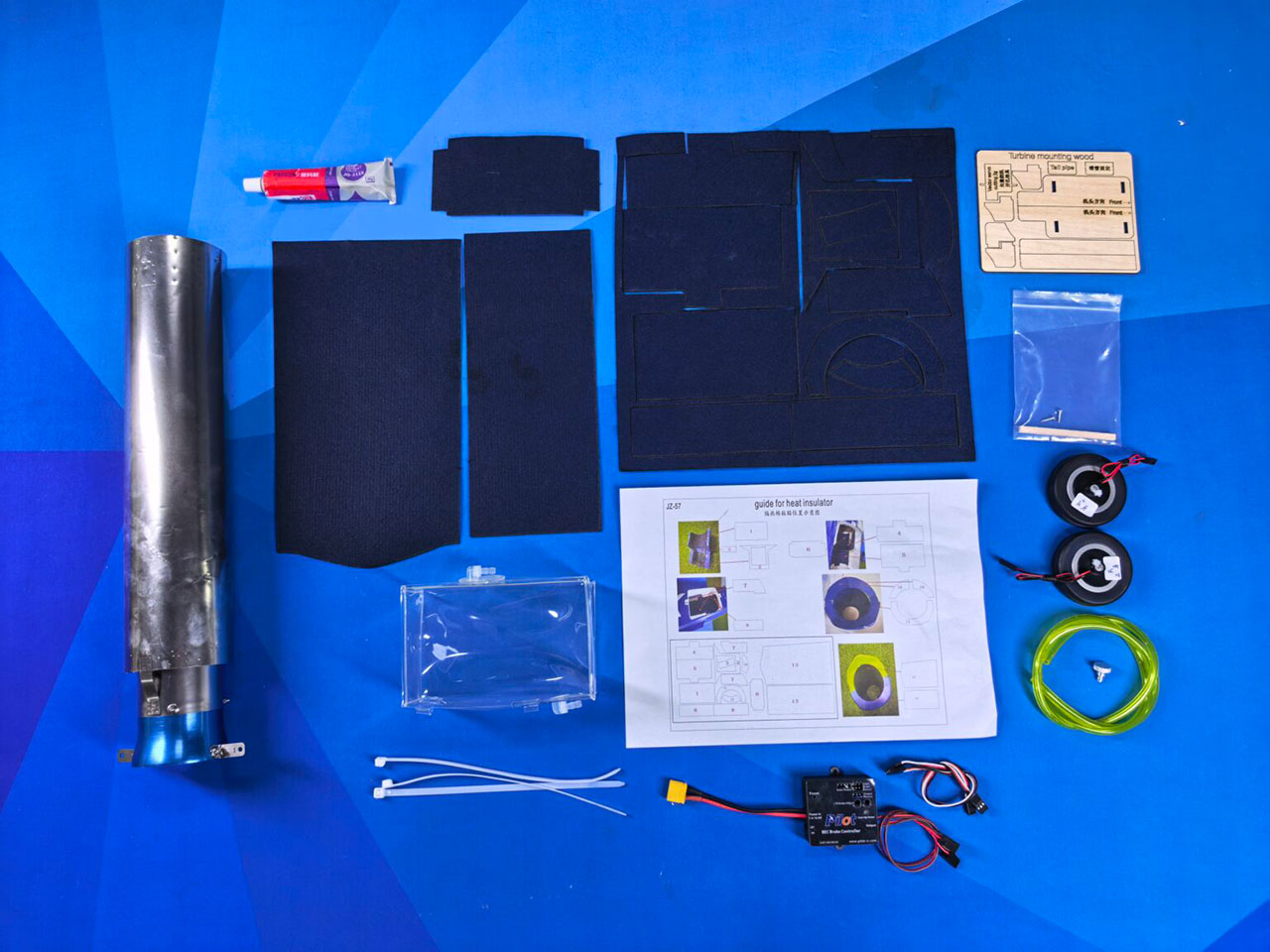

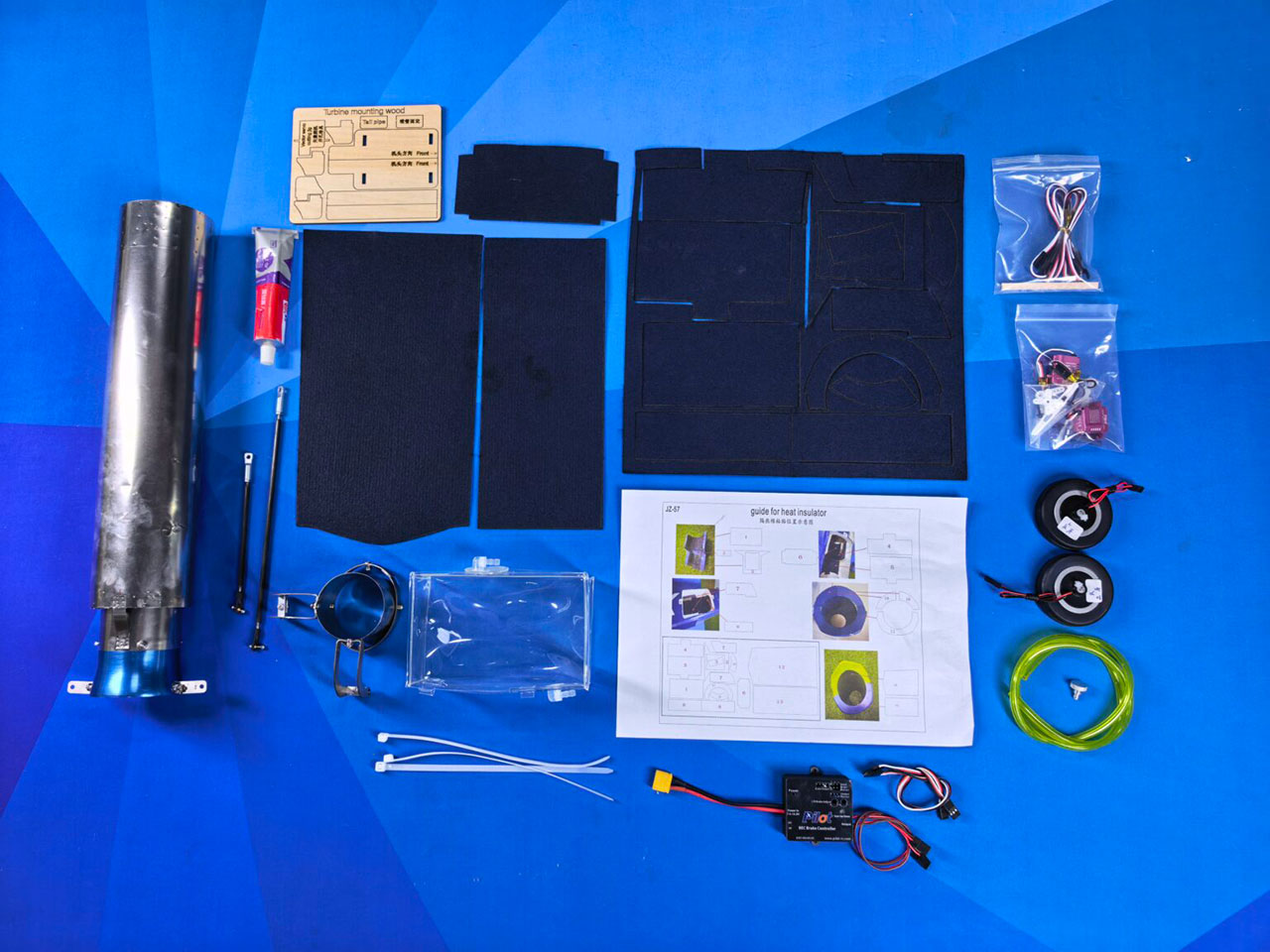

This is Video of Turbine Normal Tail pipe Configuration - power by Xicoy x70(reduce thrust to 45N)

This is Video of Turbine Vector Tail pipe Configuration - power by Xicoy x70(reduce thrust to 60N)

This is Video of Motor ready version + 3D power Combo package

Please note: MacGregor Industries will not be stocking the 3D power combo package, this item will be a special order item only.

Video interview with Ryu about background of Matrix EDF

Pilot-RC Matrix 1.8m

Gallery

Features:

EDF power system was specially developed in collaboration with Dualsky. The aircraft is equipped with a Dualsky ESC featuring ESC Forward Programming.
The built-in telemetry system supports S.BUS2, EX Bus, SRXL2, CRSF, and S.Port protocols, providing real-time flight information directly on compatible radio systems, including:

Battery Voltage
Battery Current
Battery Power
Battery Capacity Consumed
BEC Voltage
BEC Current
BEC Capacity Consumed
Motor RPM
ESC temperature

The integrated Quick-Release (QR) Wing System allows the wings to be installed or removed in just minutes, making transportation and field assembly fast and hassle-free.

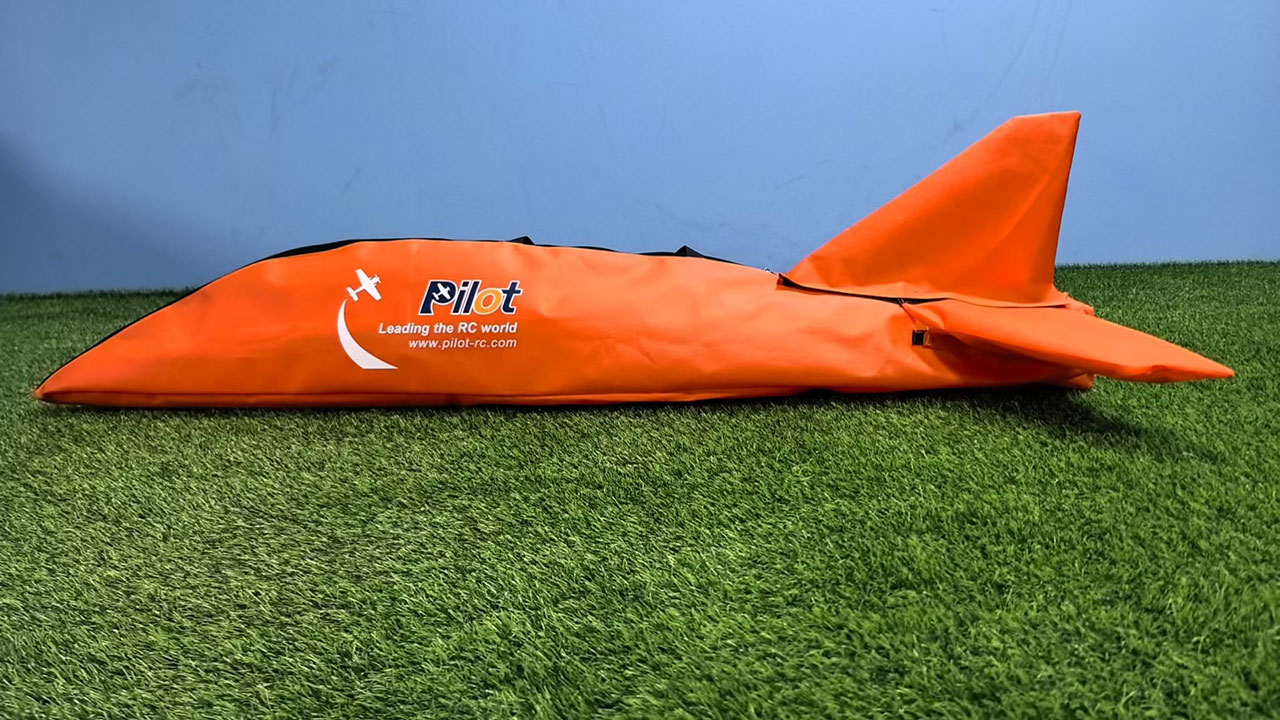

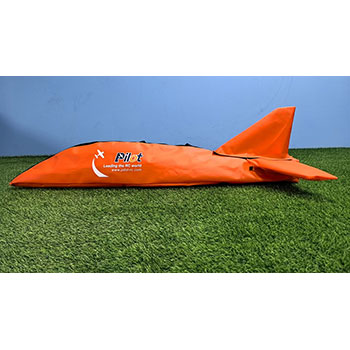

The Matrix Foam EDF comes with wing bag. Whether you’re heading to your local flying field or traveling to an event, the Matrix Foam EDF is designed to spend less time on the ground and more time in the air.
Convertible Flap System to full-span aileron

Included Hardware:

Servo pre-installed for all configuration

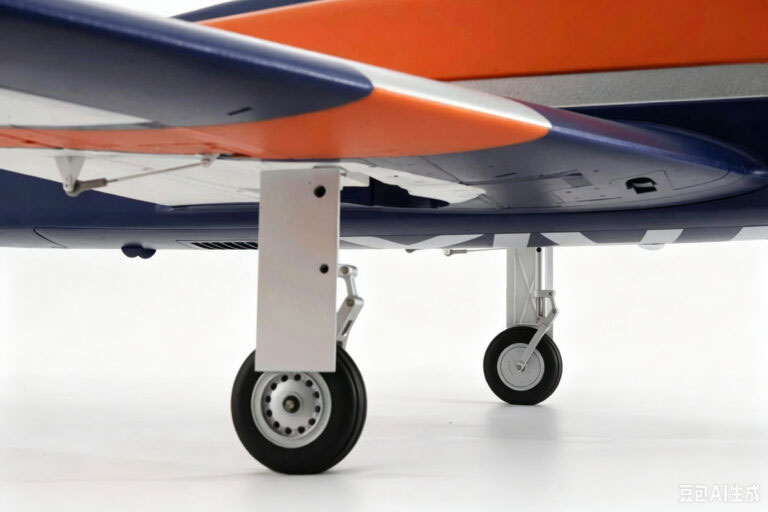

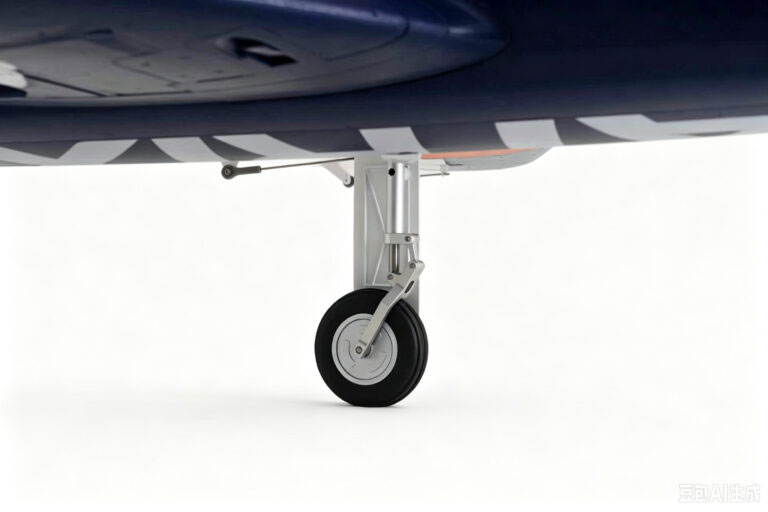

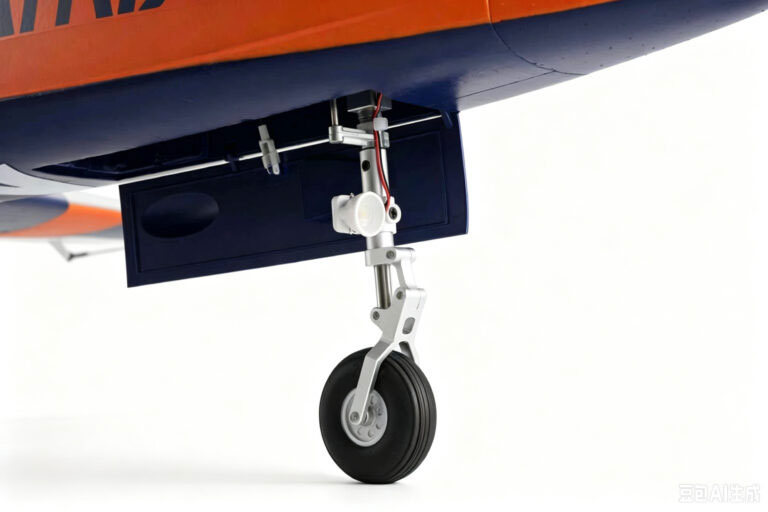

Retract pre-installed for all configuration
EDF 90mm and ESC pre-installed for PNP both 8s and 6s version
Brake wire signal for wheel brake are pre-installed for all configuration
Pre-installed linkage for all surface
Additional linkage for convertible flap system for easily configured as full-span aileron
Wingbag
