Secraft V1 1.0 Inch (M2) Servo Arm
Click On Images to Enlarge
Overview
Material: aluminium 6061-T6 (anodised)

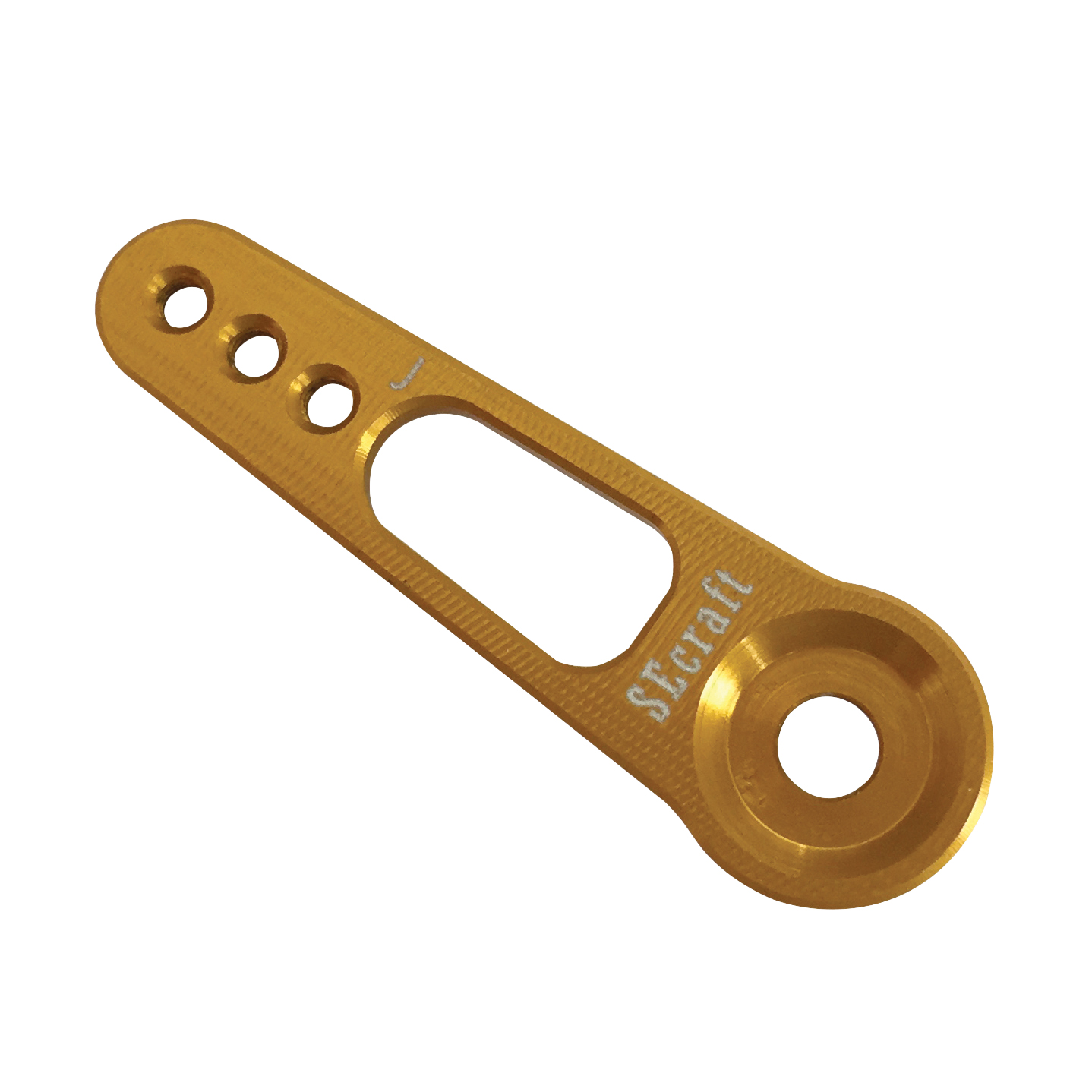

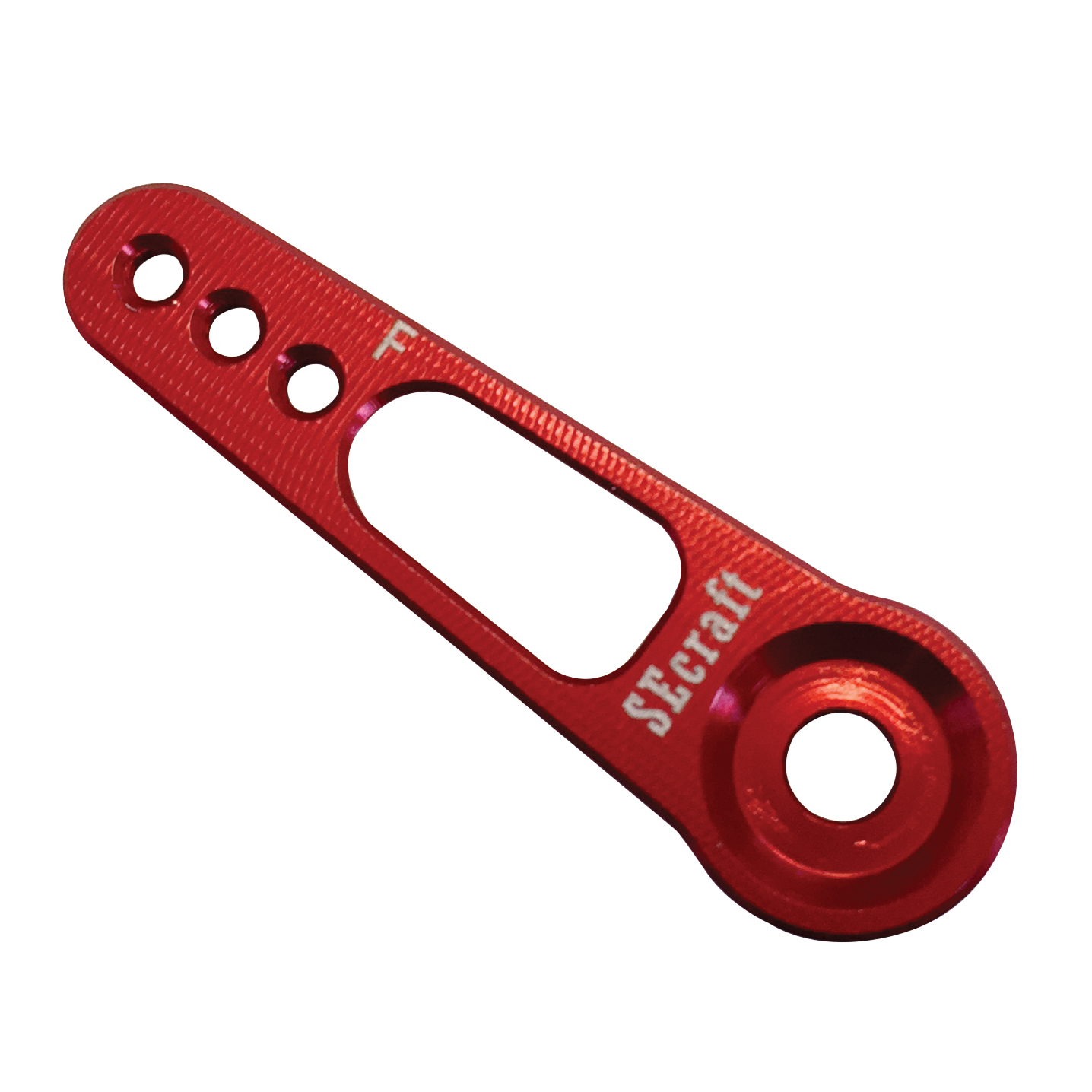

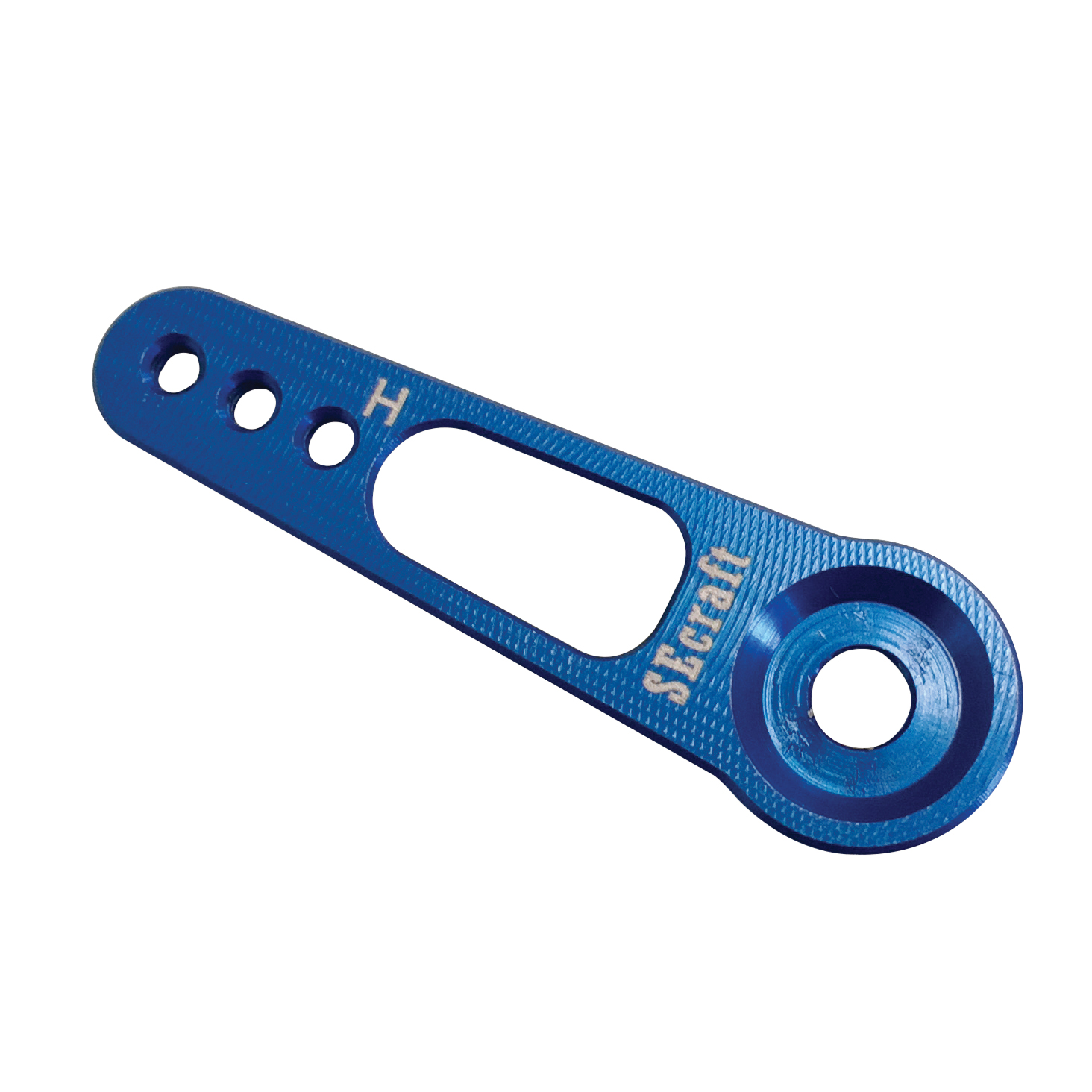

JR:23T(Gold), Hitec:24T(Blue), Futaba:25T(Red)
Length: 1.0 Inch (25.4mm)
Fixing screw bolt is M2
Weight: 2g
1 Per package
Bolt is not included

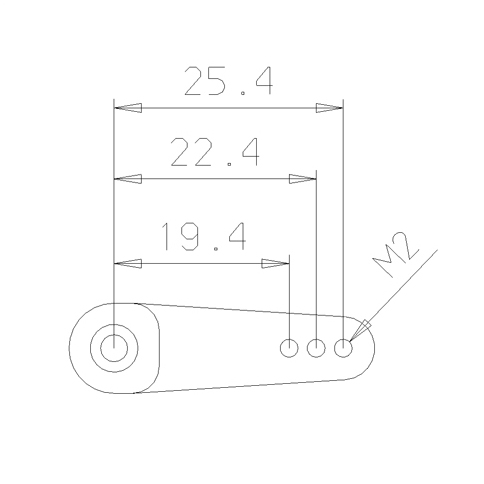

![1.0inch M2 servo arm drawing](https://www.hobbyplastic.co.uk/images/SEC/SEC200-drawing.jpg)
Installation Guide
- Follow aircraft manufactures recommendation for Servo control horn set up.
- Loctite all servo screws.
- Install ball link on bottom of servo arm (where possible).
- Keep all linkage tight.
- Servo arms longer than what is recommended can cause.
The Hitec 8XXX series servos must use Futaba type.
![Secraft logo](../images/SECRAFT-info-page-marker.png)
Order Code: SEC200-202
Manufactured By Secraft
